EV 230 H oder H/K 8 Kanal
Terminal strip 230V, 8-channel for controller with automatic heating/cooling switchover (change-over input).
| Article number | 010121141500 |
|---|---|
| Contact | Heating or Heating and cooling |
| Voltage | AC 230 V 50 Hz |
| Switching current | |
| Colour | |
| Temperature range | 0 … 50°C |
| Measurements | 310 x 90 x 65 mm |
| Technology | |
| Temperaturedrop | |
| Surface | |
| Control procedure | |
| Display | |
| Programmable | |
| Remote sensor | |
| Switch | |
| LED |

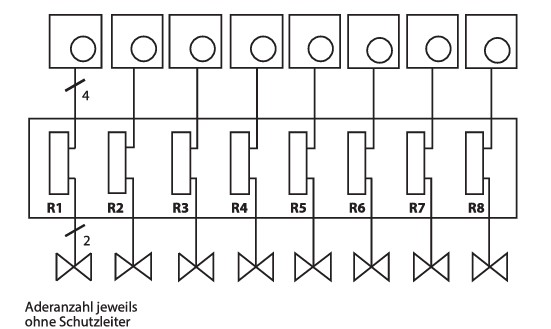

Distribution strip for wiring actuators with room temperature controllers. This unit is used for wiring temperature controllers and electrothermal actuators in connection with hot water underfloor heating systems. For heating only or heating and cooling applications. With this distribution strip (in conjunction with temperature controllers), the temperature of up to 8 rooms (zones) can be controlled independently of each other. Perfectly coordinated interaction with the controllers of the UTE 2500 / UTE 3500 / ATR 4500 series. Controllers are with automatic heating/cooling switchover (change-over input). For 230 V actuators and controllers. Simple wiring without screwdriver. With top-hat rail for wall mounting. Switching capacity max 16Actuators a 3W.
Terminal block 230 V, 8-channel for controller with automatic heating/cooling changeover (change-over input). degree of protection IP 40
